Products
From wire rope slings to 400-tonne spooling winches — every product is controlled within our QA/QC management systems, with datasheets available for download.
Product category
1960-grade wire and wire rope core with ferrule-secured eyes.
With a wide, flat surface and strength exceeding chain, webbing slings are lighter than rope and more resilient than wire.
Product category
Available in a variety of brands, all produced as high-quality grade 80 components.
Product category
Our range of shackles is manufactured by Van Beest. Models include G-4161, G-4163, G-4151, G-4153, P-6036, P-6038, P-6033, G-5263, G-5163, P-6031, and G-4263.
Product category
Product category
Popular because it sets quickly and stays in the seabed — its design engages the bottom and digs in within two shank lengths, staying buried through changes of direction and tide.
A versatile high holding power (HHP) anchor with adjustable shank (32, 41, and 50 degrees) to accommodate soil conditions — the most applied anchor in the offshore industry.
Product category
Developed to overcome the problems of recovering rig anchors when anchor pendant lines fail in service.
Product category
Our inventory includes all types of mooring equipment available for rental or direct purchase: steel wire ropes, anchor chain, buoys, synthetic tethers, anchors, and a complete range of jewellery to connect the different components together. All equipment is certified and controlled within our QA/QC management systems.
Product category
Catalogue available on request.
Wire rope spoolers
Five in-house spooling units, all with certified lifting points and load test certificates.

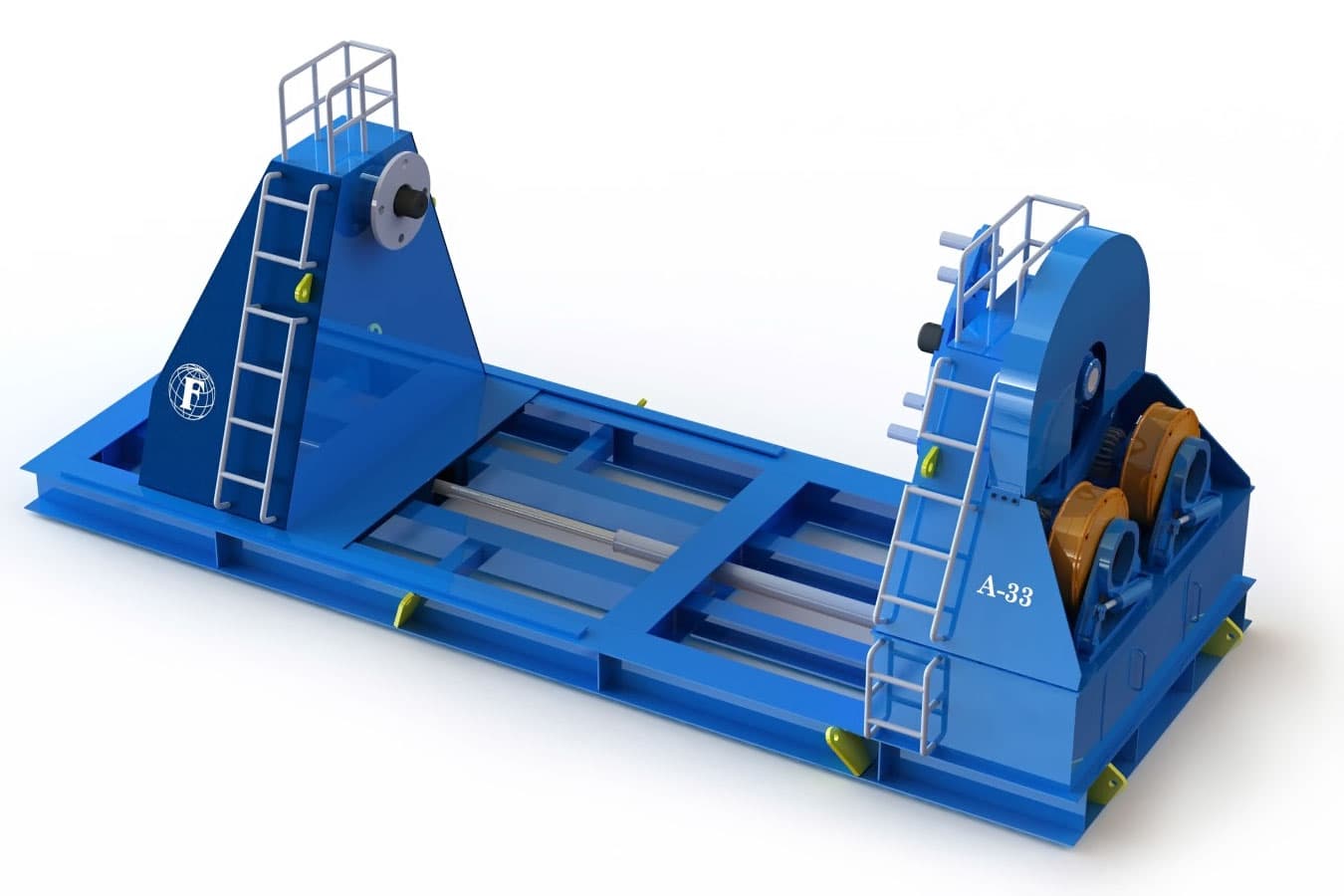

Comes complete with hydraulically controlled under rollers to assist loading and unloading in a dynamic environment. Equipped with a double Hägglunds motor delivering back tension up to 34 tonnes.
Certified lifting points; supplied with load test certificates.
| Max reel width | 4,429 mm |
|---|---|
| Min reel width | 2,269 mm |
| Max flange height | 2,000 mm |
| Width | 3,100 mm |
|---|---|
| Length | 8,400 mm |
| Height | 3,400 mm |
| Weight | 20,000 kg |

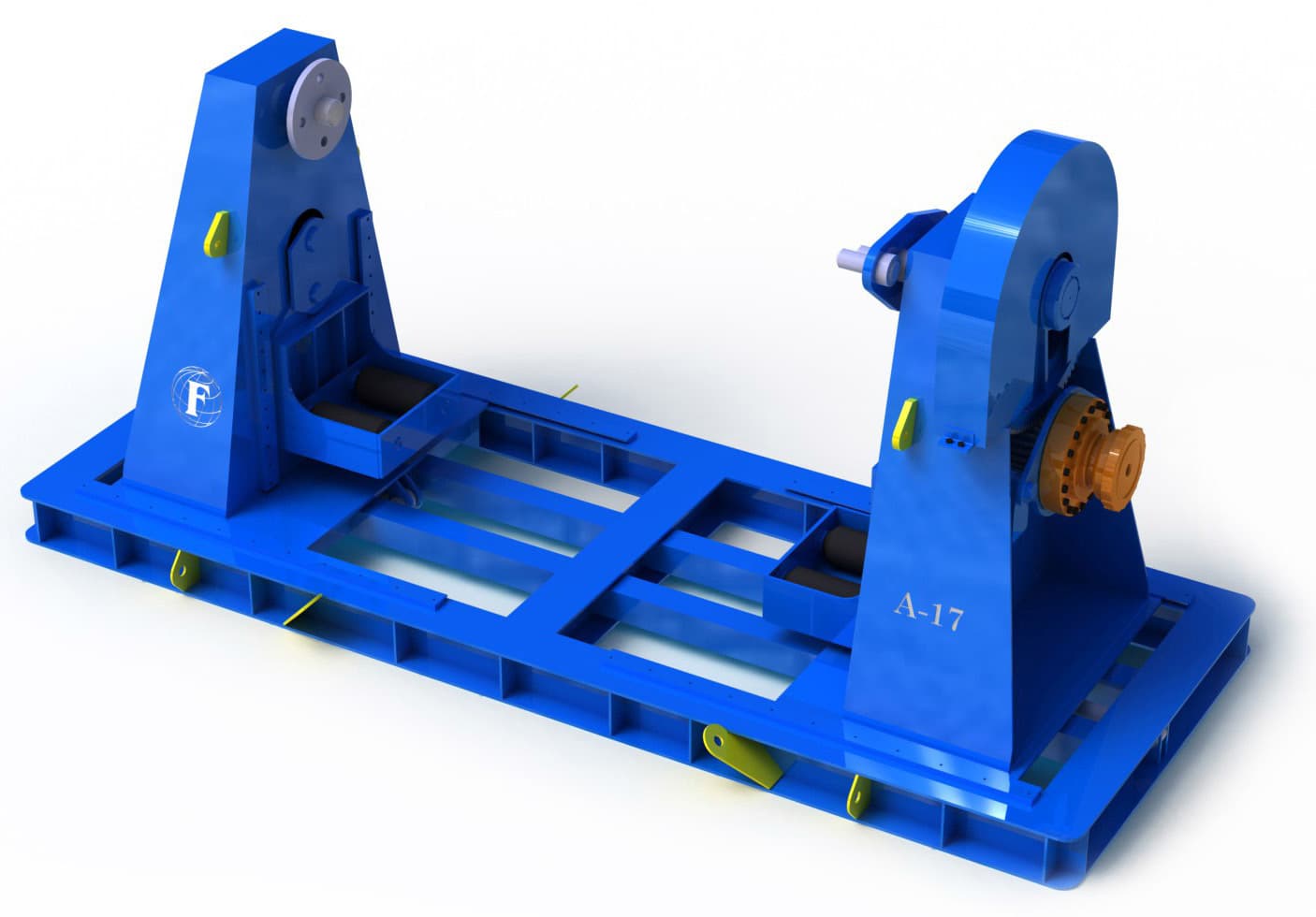

Comes complete with under rollers to assist loading in a dynamic environment. Equipped with a double Hägglunds motor delivering back tension up to 34 tonnes.
Certified lifting points; supplied with load test certificates.
| Max reel width | Adjusts to suit |
|---|---|
| Min reel width | 1,927 mm |
| Max flange height | 4,000 mm |
| Width | 3,000 mm |
|---|---|
| Length | 7,638 mm |
| Height | 3,214 mm |
| Weight | 16,000 kg |

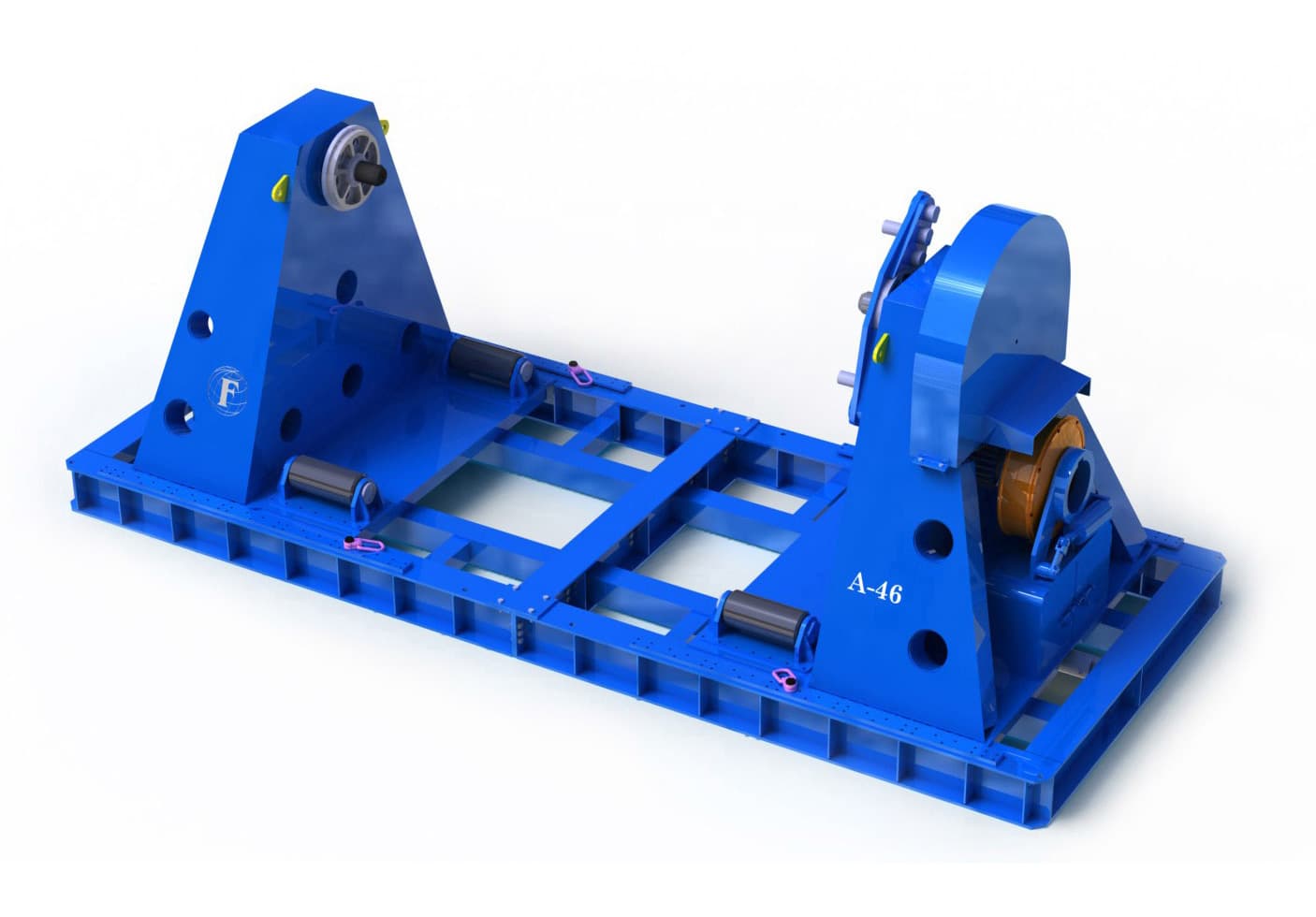

Provides up to 64 tonnes of back tension. Fully adjustable to accommodate different reel sizes.
Certified lifting points; supplied with load test certificates.
| Max reel width | 4,429 mm |
|---|---|
| Min reel width | 2,269 mm |
| Max flange height | 2,000 mm |
| Width | 3,100 mm |
|---|---|
| Length | 8,400 mm |
| Height | 3,400 mm |
| Weight | 20,000 kg |

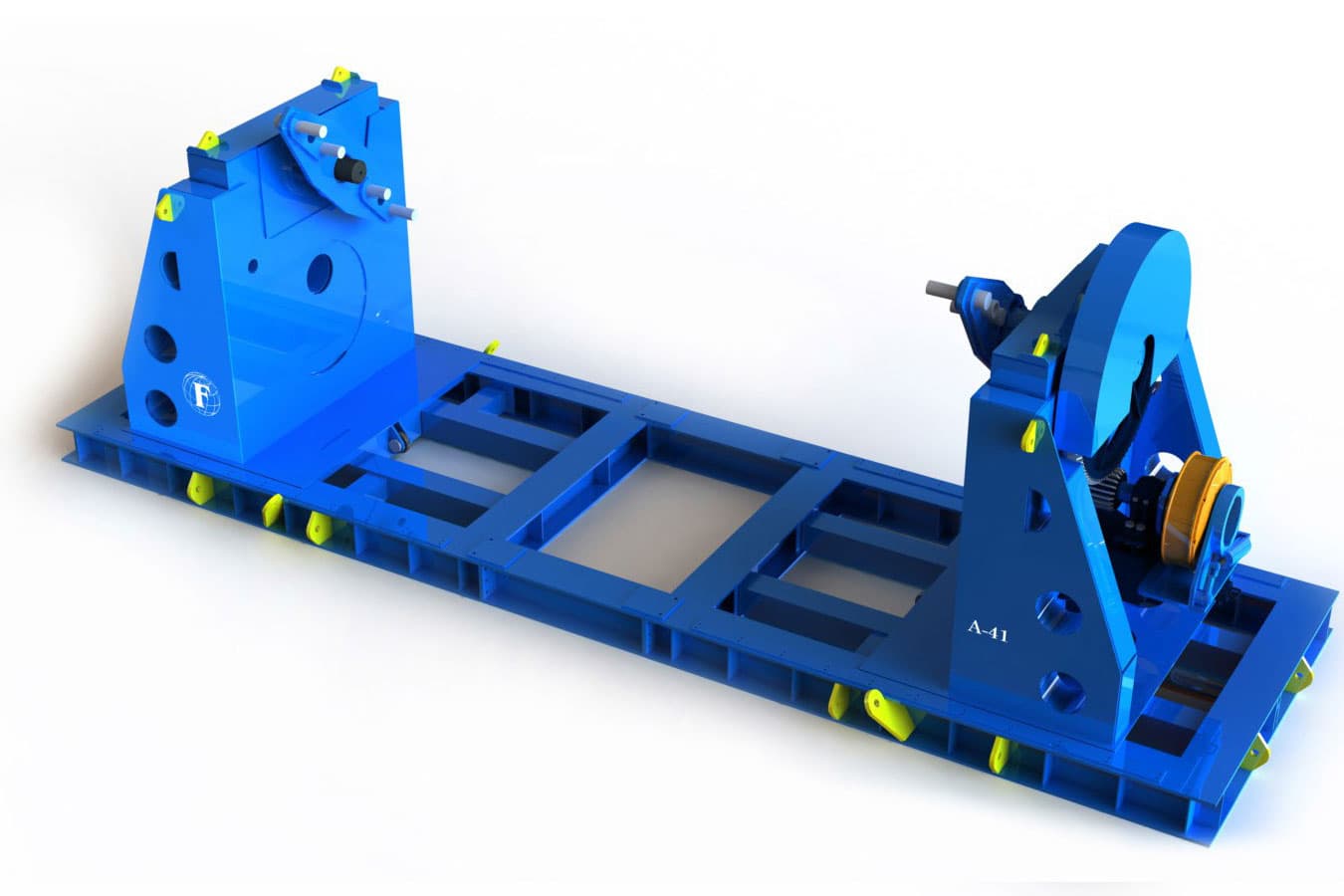

High-performance spooling unit, fully adjustable by hydraulics, providing constant back tension up to 64 tonnes.
Certified lifting points; supplied with load test certificates.
| Max reel width | 6,182 mm |
|---|---|
| Min reel width | 1,750 mm |
| Max flange height | 6,000 mm |
| Width | 3,374 mm |
|---|---|
| Length | 8,876 mm |
| Height | 3,701 mm |
| Weight | 20,000 kg |
A robust and efficient winch, ideal for subsea deployment, with constant-tension ability up to 385 tonnes.
| Rope holding capacity | 3,000 m of 83 mm rope |
|---|---|
| Maximum pull | 345 tonne (1st layer) |
| Hoisting speed | 4.4 m/min at the first layer |
| Width | 2,580 mm |
|---|---|
| Barrel diameter | 1,800 mm |
| Flange diameter | 3,400 mm |
| Width | 4,960 mm |
|---|---|
| Length | 4,960 mm |
| Height | 4,280 mm |
| Weight | 36,000 kg |
